UNDERSTANDING WIRE MESH WEAVING PATTERNS

The manufacturing of wire mesh has evolved over the last 2 decades. The use of automation and programming has made the process of weaving quality wire mesh more reliable and repeatable.

There are various standard weaving patterns that are produced depending upon the requirement of the customerThe horizontal wire that runs across is called Weft and the one that runs vertically is known as WarpThe different alternation of weft and warp wires and their wire thickness creates countless possibilities.

Let’s Try to Examine Few Weaving Patterns

THE PLAIN WEAVE PATTERN:

  • As the name suggests, plain weave is the most commonly used wire mesh weave across all the applications.
  • Each Horizontal wire runs through the vertical wire at 90 degrees.
  • The wire diameter of Weft and Warp wire is the same.
  • The range of weaving this plain weave wire mesh is from 4 mesh to 400 mesh.
  • This weaving pattern produces uniform SQUARE holes throughout the wire mesh roll.
  • The strength of this weave is the least when compared to another weaving pattern.
Square Mesh Plain Weave
                                                   Square Mesh Plain Weave

THE PLAIN DUTCH WEAVE PATTERN:

  • The Plain Dutch Weave has the same weaving pattern as the plain weave, the difference is in the wire diameter.
  • The Dutch weave is produced by running the fine wire horizontally (Weft) and the relatively coarse wire vertically (Warp).
  • This weave pattern is more rigid than plain weave and twill weave.
  • Due to the combination of fine and coarse wire, finer aperture size can be achievable with higher dirt holding capacity and rigidity.
  • Finer aperture size can be achieved with more dirt holding capacity.

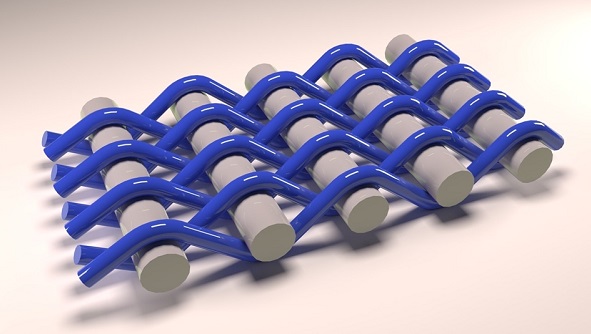

Dutch Plain Weave
                                                         Dutch Plain Weave

THE TWILLED WEAVE PATTERN:

  • The Twilled Weave Pattern is produced by running each vertical wire alternatively over and under two horizontal wires.
  • The wire diameter of the weft and warp wire is the same.
  • As compared to plain weave, the heavier wire can be used to weave heavy meshes.
  • These wire meshes are usually used in plastic reprocess applications.

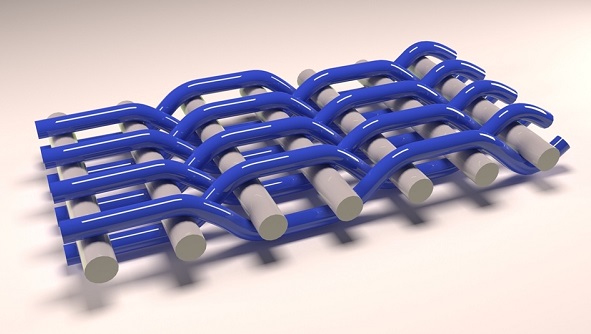

Square Mesh Twilled Weave
                                                  Square Mesh Twilled Weave

THE DUTCH TWILLED WEAVE PATTERN:

  • The Dutch Twill Weave Mesh is produced similarly as twill weave, the only difference is in the wire diameter of the weft wire (wire running horizontally across the width of the roll).
  • The weft wire is the fine wire with a smaller wire diameter and the wrap wire is the heavier wire with a bigger wire diameter.
  • Wire meshes with bigger wire diameters can be produced. This weave pattern is the most rigid amongst plain weave, plain dutch weave, and Twilled weave.

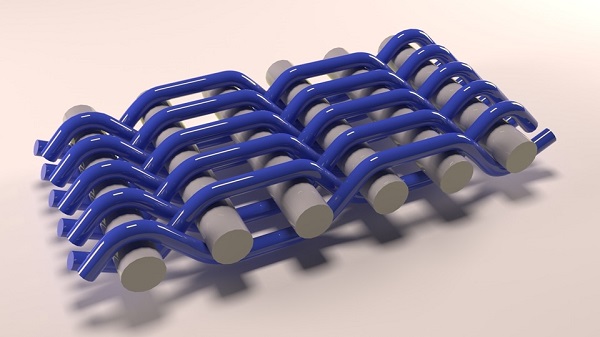

Dutch Twilled Weave
                                                      Dutch Twilled Weave
