NO.1 SS WIRE MESH MANUFACTURERS IN INDIA

Home > NO.1 SS WIRE MESH MANUFACTURERS IN INDIA

RajFilters is one of the Leading SS Wire Mesh Manufacturer and Supplier offering Premium Quality Filtration Accessories Since 1976.

We have the top quality manufacturing capability to weave any mesh from 4 to 500 as per the requirement of the customer. We are one of the largest and trusted SS Wire Mesh Manufacturer in India.

Our wire meshes are top-notch quality with a 100% guarantee of uniformity across the entire roll. We assure our customer of perfect wire mesh weaving, size, mesh, and the grade. If you are looking for a high-quality, Fine Wire Mesh and SS Wire Mesh Manufacturer in India, then your search ends here.

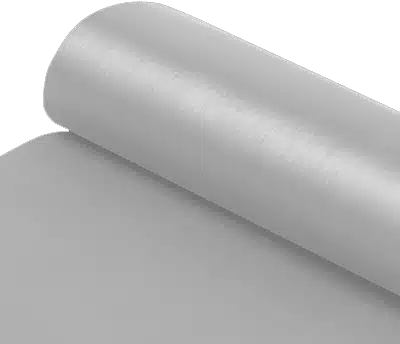

We weave different types of wire mesh rolls of various width and lengths as per our customer’s requirements. Since we are manufacturing wire mesh for 44 years, we assure our customers of the best quality and prices.

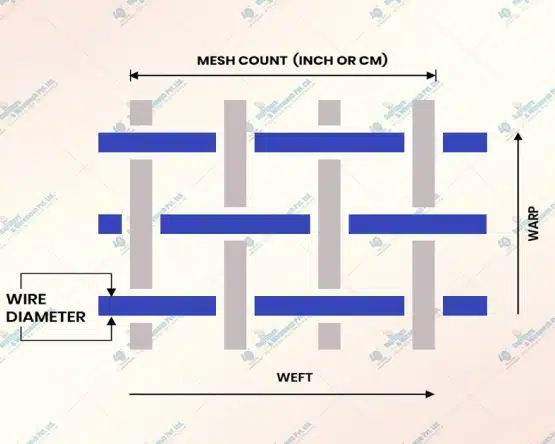

Mesh SWG DIAMETERS OF WIRE SIZE OF OPENING Approx Percentage Open Area
Inch MM Inch MM Micron
4 12 0.104 2.640 0.146 3.710 3,710 34.14
4 13 0.092 2.340 0.158 4.010 4,010 39.98
4 14 0.080 2.030 0.170 4.320 4.320 46,28
4 15 0.072 1.830 0.178 4.520 4,520 50.67
4 16 0.064 1.630 0.186 4.720 4,720 55.25
4 17 0.056 1.430 0.194 4.920 4,920 60.03
4 18 0.048 1.220 0.202 5.130 5,130 65.27
5 14 0.080 2.030 0.120 3.050 3,050 36.05
5 15 0.072 1.830 0.128 3.250 3,250 40.93
5 16 0.064 1.630 0.136 3.450 3,450 46.12
5 17 0.056 1.430 0.144 3.650 3650 51.62
5 18 0.048 1.220 0.152 3.860 3,860 57.74
5 19 0.040 1.020 0.160 4.060 4,060 63.87
5 20 0.036 0.910 0.164 4.170 4,170 67.38
6 16 0.064 1.630 0.102 2.603 2,603 37.82
6 17 0.056 1.430 0.110 2.803 2,803 43.85
6 19 0.040 1.020 0.127 3.213 3,213 57.62
6 20 0.036 0.910 0.131 3.323 3,323 61.63
6 21 0.032 0.810 0.135 3.423 3,423 65.39
8 16 0.064 1.630 0.061 1.545 1545 23.68
8 17 0.056 1.430 0.061 1.745 1,745 30.21
8 18 0.048 1.220 0.077 1.955 1,955 37.91
8 19 0.040 1.020 0.085 2.155 2,155 46.07
8 20 0.036 0.910 0.089 2.265 2,265 50.89
8 21 0.032 0.810 0.093 2.365 2,365 55.48
8 22 0.028 0.710 0.097 2.465 2,465 60.28
8 23 0.024 0.610 0.0101 2.565 2,565 65.27
8 24 0.022 0.550 0.103 2.625 2,625 68.36
8 25 0.020 0.500 0.105 2.675 2,675 70.98
10 20 0.036 0.910 0.064 1.630 1,630 41.18
10 21 0.032 0.810 0.068 1.730 1,730 46.39
10 22 0.028 0.710 0.072 1.830 1,830 51.91
10 23 0.024 0.610 0.076 1.930 1,930 57.74
10 24 0.022 0.550 0.078 1.990 1,990 61.38
10 25 0.020 0.500 0.080 2.040 2,040 64.50
12 22 0.028 0.710 0.055 1.407 1,407 44.16
12 23 0.024 0.610 0.059 1.507 1,507 50.67
12 24 0.022 0.550 0.062 1.567 1,567 54.78
12 25 0.020 0.500 0.064 1.617 1,617 58.34
12 26 0.018 0.450 0.066 1.667 1,667 62.00
14 24 0.022 0.550 0.050 1.264 1,264 48.56
14 25 0.020 0.500 0.052 1.314 1,314 52.48
14 26 0.018 0.450 0.054 1.364 1,364 56.55
14 27 0.016 0.400 0.056 1.414 1,414 60.77
14 28 0.015 0.370 0.057 1.444 1,444 63.37
16 24 0.022 0.550 0.041 1.038 1,038 42.71
16 25 0.020 0.500 0.043 1.088 1,088 46.93
16 26 0.018 0.450 0.045 1.138 1,138 51.34
16 27 0.016 0.400 0.047 1.188 1,188 55.96
16 29 0.013 0.340 0.049 1.248 1,248 61.75
16 30 0.012 0.310 0.050 1.278 1,278 64.76
18 25 0.020 0.500 0.036 0.911 911 41.69
18 26 0.018 0.450 0.038 0.961 961 46.39
18 27 0.016 0.400 0.040 1.011 1,011 51.34
18 28 0.015 0.370 0.041 1.041 1,041 54.43
20 24 0.022 0.550 0.028 0.720 720 32.14
20 25 0.020 0.500 0.030 0.770 770 36.76
20 26 0.018 0.450 0.032 0.820 820 41.69
20 27 0.016 0.400 0.034 0.870 870 46.93
20 28 0.015 0.370 0.035 0.900 900 50.22
20 29 0.013 0.340 0.037 0.930 930 53.62
20 30 0.012 0.310 0.038 0.960 960 57.14
24 27 0.016 0.400 0.026 0.658 658 38.69
24 28 0.015 0.370 0.027 0.688 688 42.30
24 29 0.013 0.340 0.028 0.718 718 46.07
24 30 0.012 0.310 0.029 0.748 748 50.00
24 32 0.011 0.270 0.031 0.788 788 55.48
30 28 0.015 0.370 0.019 0.477 477 31.70
30 29 0.013 0.340 0.020 0.507 507 35.81
30 30 0.012 0.310 0.021 0.537 537 40.18
30 31 0.011 0.290 0.022 0.557 557 43.23
30 32 0.011 0.270 0.023 0.557 577 46.39
40 32 0.011 0.270 0.014 0.365 365 33.04
40 33 0.010 0.250 0.015 0.385 385 36.76
40 34 0.009 0.234 0.016 0.401 401 39.88
40 35 0.008 0.210 0.017 0.425 425 44.80
40 36 0.008 0.193 0.017 0.442 442 48.45
50 34 0.009 0.234 0.011 0.274 274 29.09
50 35 0.008 0.210 0.012 0.298 298 34.41
50 36 0.008 0.193 0.012 0.315 315 38.45
50 37 0.007 0.172 0.013 0.336 336 43.75
50 38 0.006 0.152 0.014 0.356 356 49.11
60 36 0.008 0.193 0.009 0.230 230 29.60
60 37 0.007 0.172 0.010 0.251 251 32.25
60 38 0.006 0.152 0.011 0.271 271 41.08
80 38 0.006 0.152 0.007 0.166 166 21.17
80 39 0.005 0.130 0.007 0.188 188 34.88
80 40 0.005 0.122 0.008 0.196 196 37.91
80 41 0.004 0.112 0.008 0.206 206 41.89
80 42 0.004 0.102 0.008 0.216 216 46.07
100 42 0.004 0.102 0.006 0.152 152 35.81
100 43 0.004 0.091 0.006 0.163 163 41.18
100 44 0.003 0.081 0.007 0.173 173 46.39
120 44 0.003 0.081 0.005 0.131 131 38.11
150 45 0.003 0.071 0.004 0.098 98 33.72
150 45.5 0.002 0.063 0.004 0.106 106 39.43
200 47 0.002 0.050 0.003 0.077 77 36.76
250 48 0.002 0.040 0.002 0.062 62 36.76
300 48 0.002 0.040 0.002 0.045 45 27.83
325 48.5 0.001 0.035 0.002 0.043 43 30.49
400 49.5 0.001 0.028 0.001 0.036 36 31.25
500 50 0.001 0.025 0.001 0.026 26 25.79
WEAVE TYPE MESH COUNT WARP WIRE IN INCHES SHUTE WIRE IN INCHES ABSOLUTE MICRON RATING NOMINAL MICRON RATING
PDW 8X20 0.014 0.0126 330-350  280
PDW 12X64 0.024 0.0165 270-290  200
PDW 14X88 0.02 0.013 220-240  150
PDW 16X80 0.0169 0.0134 225-235  140
PDW 24X110 0.015 0.01 115-125  80
PDW – TWIN WARP 24X128 2 X .010 0.004 110-120  75
PDW 30X150 0.009 0.007 110-112  63
PDW – TWIN WARP 30X150 2 X .009 .007″ 95-113  60
PDW 40X200 0.007 0.0055 70-75  55
PDW 50X250 0.0055 0.0045 58-63  40
PDW 80X400 0.005 0.003 40-45  35
TDW 30X250 0.01 0.008 110-120  53
TDW 80X700 0.004 0.003 35-40  25
TDW 120X400 0.004 0.0025 50-55  40
TDW 165X800 0.0028 0.002 25-28  15
TDW 200X600 0.0024 0.0018 30  20
TDW 165X1400 0.0028 0.0016 16-20  10
TDW 200X1400 0.0028 0.0016 12-14   5
TDW 325X2300 0.0014 0.001 8-9   2
TDW 400X2800 0.001 0.0008 6-7   1

Grades of S.S material used in Wire Mesh

Grade C
Max		 Mn
Max		 P
Max		 S
Max		 Si
Max		 Cr
Min/Max		 Ni
Max		 MO
Max
304 0.08 2.00 0.05 0.03 1.00 18-20 8-10 –
304L 0.03 2.00 0.05 0.03 1.00 16-18 8-10 –
316 0.08 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25
316L 0.03 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25
